The nano. slider project is the first project of keebwerk. We have made this page to post updates on the project and the current delays that have occured.

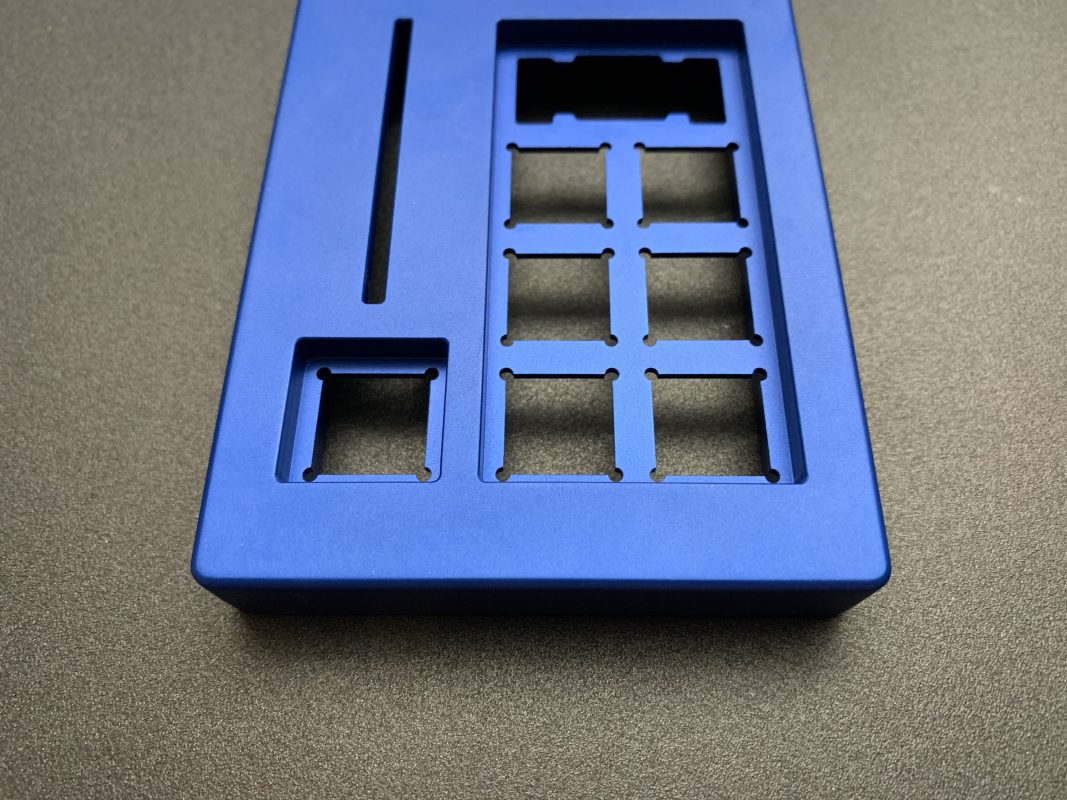

March / April – First final products have arrived of the product, however it turns out the prototypes that we have received earlier were not followed to the quality standard. Anodisation has been good however and we are glad to say the anodisation standard will be carried on, but with a different CNC manufacturer. In the picture you can see that the edges of the CNC parts look like they have been finished off by hand, we are unsure why this is, the communication with the manufacturer was not clear on this.
Packaging arrived, looks really good, happy to keep using this for the future nano. projects.
Brass turned out not finished as we required, they even oxidised over time of being here. Not great… But now we have to get that redone too.
May – New manufacturer has been looked for, I got new tips on whom to try out manufacturing with, I ordered two prototypes at both places, these are to arrive in 1 month. Shout out to Matt from the community who helped out to get this manufacturer under our belt.
June – PCBs have been tested, however we have discovered due to issues in a gerber file version (who knew that would have been a big thing), paths have merged so 2,3 switch locations were activating at the same time. Either the decision was to cut the connection and wire each PCB separately, or to manufacture it new. With the manufacturing, we have decided to strengthen the PCB screw holes by making them out of gold plated aluminium.
July – PCBs are in, manufacturing is done and they work! Prototypes have arrived and finally are going into final manufacturing, very happy with the quality, there was some leakages on anodisation but we are working with the manufacturer to prevent that from happening in the future
August – All is done, now only Brass orders are the issue, we have to wait to reprocess those orders. Please check images below of the faults, if you want a free old brass plate with wrong treatment, let me know!
September – First orders are going out now, the knobs were originally 1mm too high, but stick with mechanical friction, meaning there is no need for some awful looking screw in the knob. There are new knobs that have been re-made 1mm deeper and those are the final knobs on all nano. sliders.

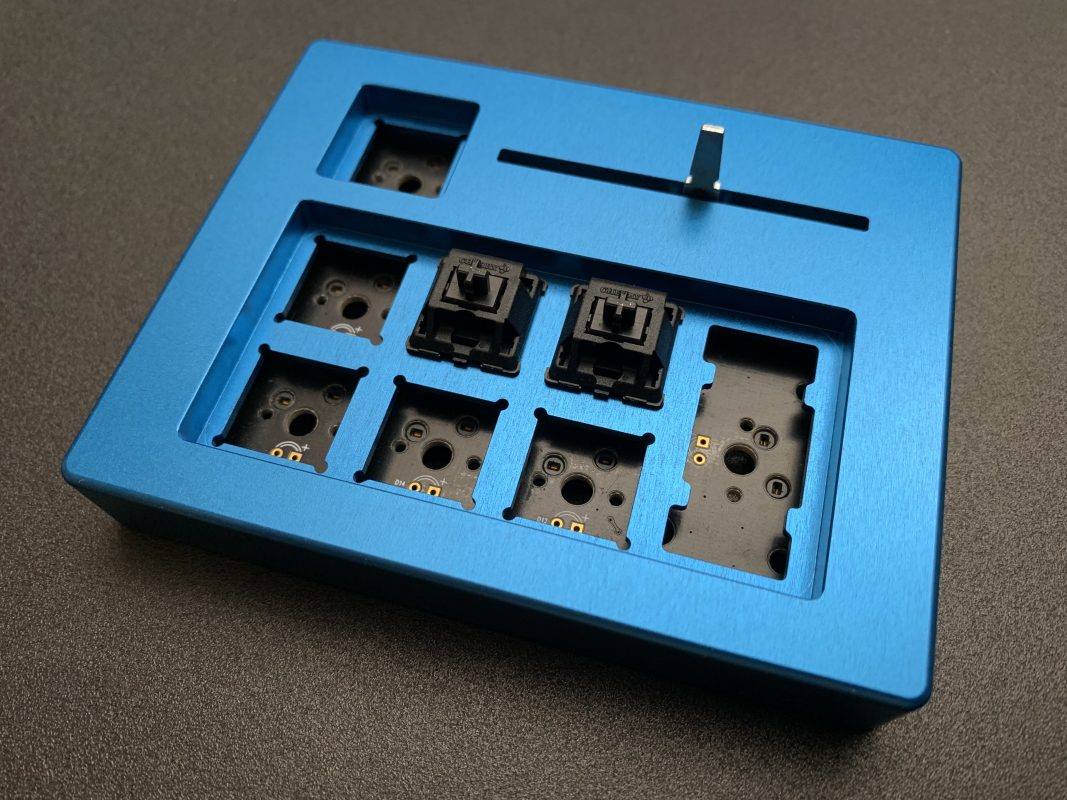

October – All parts are in now, so we have some issues with colors still but we are now contacting all customers. Pictures are to be attached below, the nano slider works like a charm and we are finally happy to end this project. Stock will be available once we get more of them sorted out and sent.
